[Spring Hateoas 1.2] RepresentationModel 테스트

https://docs.spring.io/spring-hateoas/docs/1.2.0-SNAPSHOT/reference/html/

Spring HATEOAS - Reference Documentation



스프링 래퍼런스에 따르면 헤이토스의 표현 모델은 총 4가지가 있습니다.

class RepresentationModel

class EntityModel

class CollectionModel

class PagedModel



그 중 Entity와 Collection은 Representation을 상속받고,

Paged는 Collection을 상속받기 때문에 결국 Representation모델을 상속받아 사용합니다.



EntityModel        -|> RepresentationModel

CollectionModel -|> RepresentationModel

PagedModel       -|> CollectionModel



표현 모델만 테스트할 컨트롤을 아래와 같이 만들었습니다.



RepresentationModel은 아래와 같이 상속받은 모델을 사용합니다.


@Getter
@Setter
public class PersonModel extends RepresentationModel<PersonModel>
{
  String firstName, lastName;
}





그 외 표현모델에서는 RepresentationModel을 상속받지않고 기본생성자만 선언하여 작성한 Person 객체를 사용했습니다.

package com.jjangms.study.hateoas.controller;

import com.jjangms.study.hateoas.model.Person;
import com.jjangms.study.hateoas.model.PersonModel;
import java.util.Collection;
import org.springframework.hateoas.CollectionModel;
import org.springframework.hateoas.EntityModel;
import org.springframework.hateoas.IanaLinkRelations;
import org.springframework.hateoas.Link;
import org.springframework.hateoas.PagedModel;
import org.springframework.hateoas.PagedModel.PageMetadata;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class RepresentationModelController {
  @GetMapping("/representation")
  public PersonModel representation()
  {
    PersonModel model = new PersonModel();
    model.setFirstName("half");
    model.setLastName("jang");
    model.add(Link.of("http://localhost:9613/entity"));
    model.add(Link.of("http://localhost:9613/collection"));

    return model;
  }

  @GetMapping("/entity")
  public EntityModel<Person> entity()
  {
    Person person = new Person("half", "jang");
    EntityModel<Person> model = EntityModel.of(person);
    model.add(Link.of("http://localhost:9613/entity"));
    Link link = Link.of("http://localhost:9613/representation", IanaLinkRelations.NEXT);
    model.add(link.withRel("next"));

    return model;
  }

  @GetMapping("/collection")
  public CollectionModel<Person> collection()
  {
    Collection<Person> people = new java.util.ArrayList<>();
    people.add(new Person("half", "jang"));
    people.add(new Person("ms", "jjang"));
    CollectionModel<Person> model = CollectionModel.of(people);

    Link oriLink = Link.of("http://localhost:9613/collection");
    Link firstLink = Link.of("http://localhost:9613/representation", "representation");
    Link secondLink = Link.of("http://localhost:9613/paged", "paged");
    model.add(oriLink.withSelfRel());
    model.add(firstLink.withRel("representation"));
    model.add(secondLink.withRel("paged"));

    return model;
  }

  @GetMapping("/paged")
  public PagedModel<Person> paged()
  {
    Collection<Person> people = new java.util.ArrayList<>();
    people.add(new Person("half", "jang"));
    people.add(new Person("ms", "jjang"));
    PageMetadata metadata = new PageMetadata(1L, 1L, 1L, 1L);
    PagedModel<Person> model = PagedModel.of(people, metadata);

    Link link = Link.of("http://localhost:9613/paged");
    model.add(link.withSelfRel());
    link = Link.of("http://localhost:9613/representation", "representation");
    model.add(link.withRel("representation"));
    link = Link.of("http://localhost:9613/entity", "entity");
    model.add(link.withRel("entity"));
    link = Link.of("http://localhost:9613/collection", "collection");
    model.add(link.withRel("collection"));

    return model;
  }
}






아래는 mockMvc를 통해 위 컨트롤러를 테스트한 코드입니다.

package com.jjangms.study.hateoas.controller;

import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.jsonPath;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

import lombok.extern.slf4j.Slf4j;
import org.junit.jupiter.api.Test;
import org.junit.jupiter.api.extension.ExtendWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.test.context.junit.jupiter.SpringExtension;
import org.springframework.test.web.servlet.MockMvc;

@ExtendWith(SpringExtension.class)
@WebMvcTest(RepresentationModelController.class)
@Slf4j
class RepresentationModelControllerTest {
  @Autowired
  MockMvc mockMvc;

  @Test
  public void representation() throws Exception
  {
    mockMvc.perform(get("/representation"))
        .andDo(print())
        .andExpect(status().isOk())
        .andExpect(jsonPath("$._links.self").exists());
  }

  @Test
  public void entity() throws Exception
  {
    mockMvc.perform(get("/entity"))
        .andDo(print())
        .andExpect(status().isOk())
        .andExpect(jsonPath("$._links.self").exists());
  }

  @Test
  public void collection() throws Exception
  {
    mockMvc.perform(get("/collection"))
        .andDo(print())
        .andExpect(status().isOk())
        .andExpect(jsonPath("$._links.self").exists());
  }

  @Test
  public void paged() throws Exception
  {
    mockMvc.perform(get("/paged"))
        .andDo(print())
        .andExpect(status().isOk())
        .andExpect(jsonPath("$._links.self").exists());
  }
}

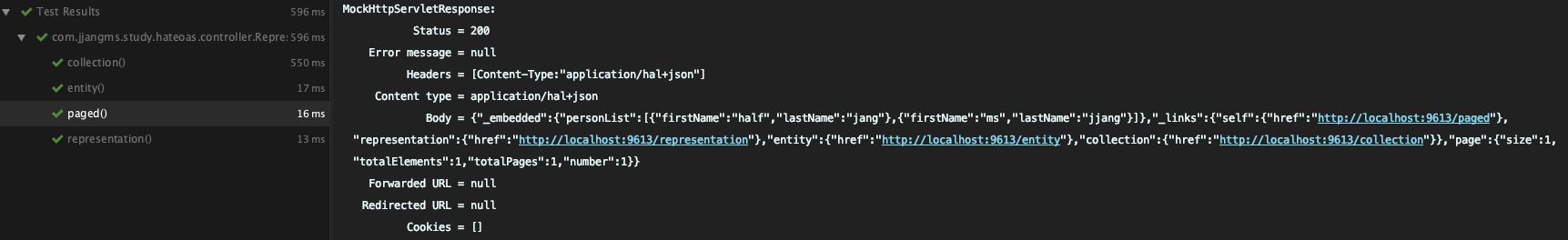

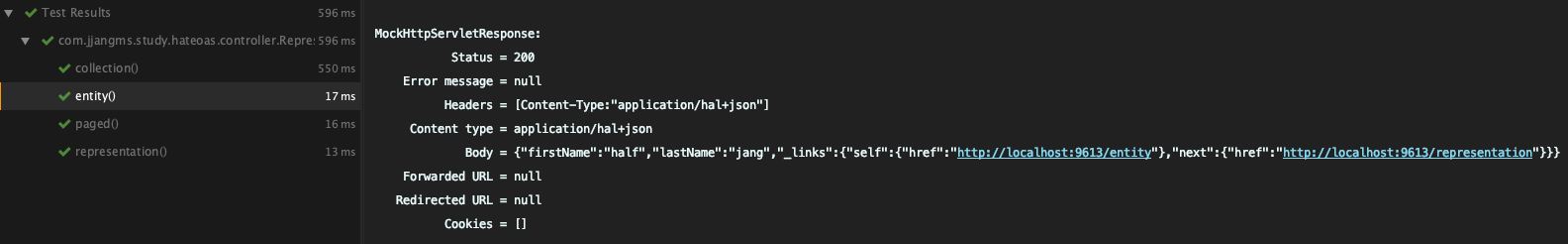

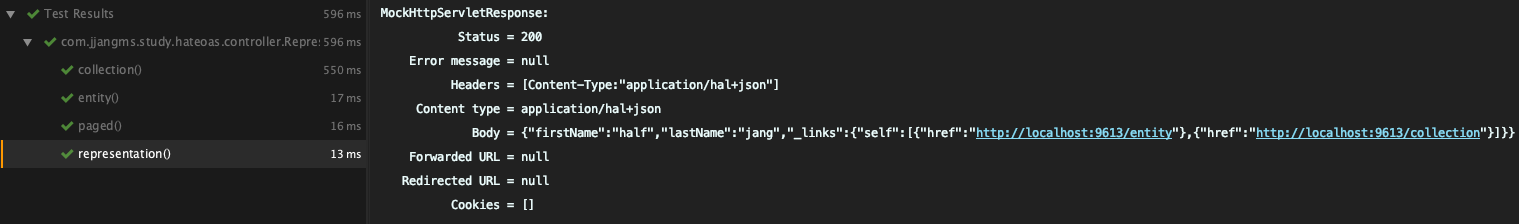

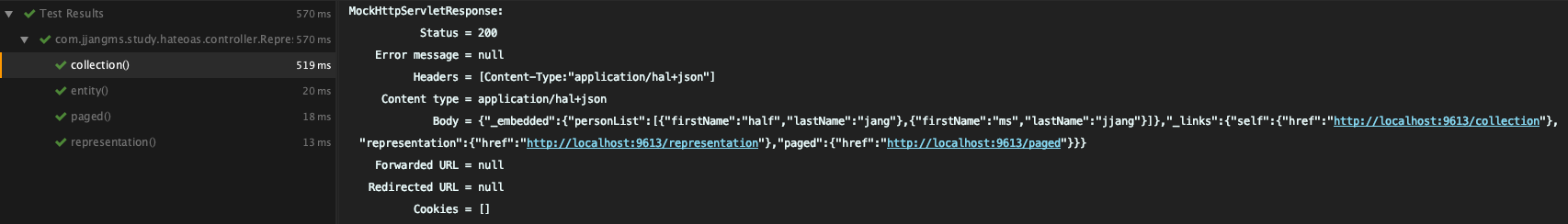

테스트 결과입니다.

Body에 이동할 링크가 "_links"로 선언된 것을 확인할 수 있습니다.
